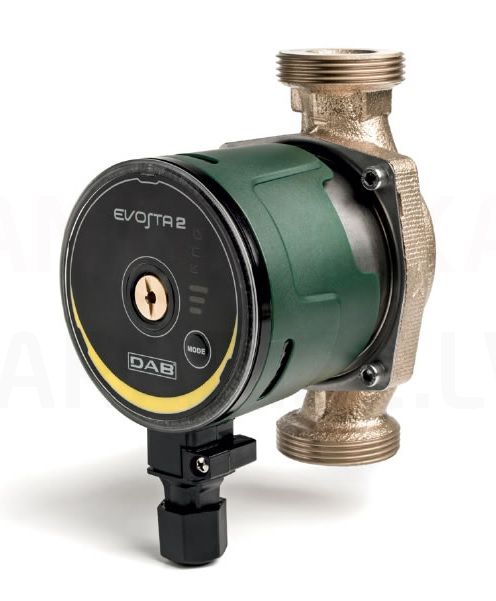

DAB recirkulācijas sūknis boilerim EVOSTA 2 SAN 40-70/150 DN25
206,99 €
Ražotājs
DAB
Modelis
60186164 25 70 150 karstam ūdenim
DAB.COM EVOSTA.COM INSTRUKCIJA
- Operating range:0-0,6 m3/h with head up to 1,1 metri
- Pumped liquid temperature range:from +2 °C to +75°C
- Working pressure:10 bar (1000 kPa)
- Protection class:IP42
- Insulation class:II
- Installation:with horizontal motor axis.
- Standard power input:single-phase 1x115-230 V~ 50/60 Hz
- Pumped liquid:Clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%).
EVOSTA 2 SAN VORTEX: 0.0 līdz 0.6 m3/h ar spiedienu līdz 1.1 m
| Kods | Nosaukums | Garums (mm) | Vītne |
| 60187267 | EVOSTA2 11/85 SAN R1/2“CIRC. | 85 mm | iekš 1/2" |
| 60187268 | EVOSTA2 11/139 SAN V CIRC. | 139 mm | ār. 1" |
EVOSTA 2 SAN: 0,4 līdz 4.2 m3/h ar spiedienu līdz 8 m
| 60186164 | EVOSTA2 40-70/150 SAN (1") M230/50-60 | 150mm | 1 1/2" |
| 60186588 | EVOSTA2 80/150 SAN (1") M230/50-60 | 150mm | 1 1/2" |
